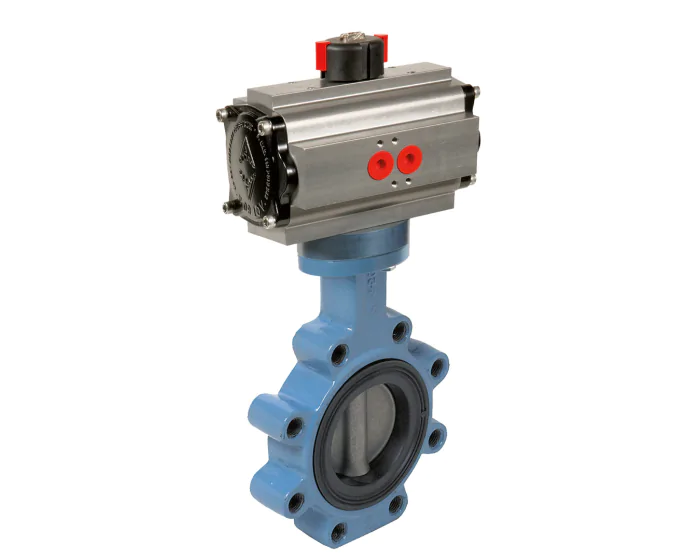

The 1162 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M and EN-GJS-500-7 disc, up to DN250. It is a Lug type.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Adjustable limit screws | Yes |
| Lockable | No |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 68 |
| Seat | NBR |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Ductile iron with rilsan coating |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN10 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category III |
| Range | TTV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10 Ductile iron Concentric DN40 - 1''1/2 Double acting | 261363015100 | S1003320 |
€210.39
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN40 - 1''1/2 Spring return | 261363016101 | S1003321 |
€243.47
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN40 - 1''1/2 Double acting | 261364015100 | S1003322 |
€210.39
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN50 - 2'' Spring return | 261364016101 | S1003323 |
€245.80
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN65 - 2''1/2 Double acting | 261365015101 | S1003324 |
€253.07
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN65 - 2''1/2 Spring return | 261365016102 | S1003325 |
€298.09
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN80 - 3'' Double acting | 261366015101 | S1003326 |
€260.96
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN80 - 3'' Spring return | 261366016102 | S1003327 |
€314.00
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN100 - 4'' Double acting | 261367015102 | S1003328 |
€297.90
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN100 - 4'' Spring return | 261367016103 | S1003329 |
€384.99
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN125 - 5'' Double acting | 261368015102 | S1003330 |
€341.86
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN125 - 5'' Spring return | 261368016104 | S1003331 |
€452.70
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN150 - 6'' Double acting | 261369015103 | S1003332 |
€408.67
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric DN200 - 8'' Double acting | 261370015103 | S1003333 |
€551.61
(excl. btw)
|
add to cart |
| Flanged PN10 Ductile iron Concentric Double acting DN250 - 10'' | 261371015104 | S1003334 |
€869.87
(excl. btw)
|
add to cart |
